EP 2 644 800 B1

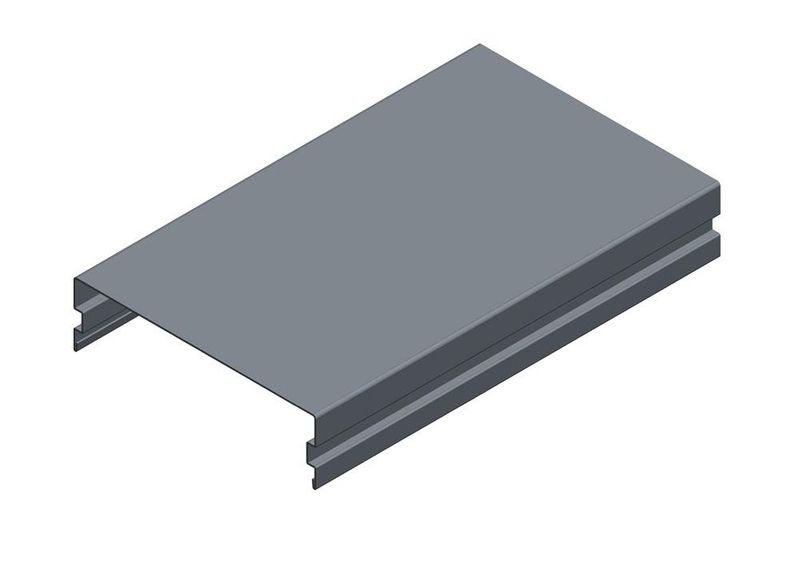

Patented wall and parapet coping

A roof edge with patented fastening: tailored to the building, simply pressed into place and individually removable for maintenance.

Benefits for you

Up to 40 % less installation time and therefore installation labour costs – depending on the project
In the 3-metre comparison, two patented brackets instead of four, i.e. 50% fewer fastening points, depending on building height and design
Fewer brackets mean less material and labour
Fast installation with simple handling
Particularly economical on larger projects and high volumes
Each module individually removable: easy access to the parapet surface for maintenance and lightning protection inspection
High-quality, architecturally appealing finish, made to measure up to 6,000 mm in any RAL colour

How it works

Schematic illustration of a 3-metre module. The required number of brackets depends on building height and project-specific design.

Patented bracket

PMV and patented bracket in cross-section

The edges of the PMV profile engage with the patented bracket. At the module joint, two adjacent profiles share one bracket.

Joint bracket at the start · second bracket at 1.5 m · joint bracket at the end, shared with the next module.

Press the coping down evenly. The profile edges engage.

Patented brackets per module

50% fewer

Fastening points

Individually removable

Module

01
Fit the patented brackets
One bracket at the module joint, the second at 1.5 m. The required number depends on the building height.
02
Press the coping into place
The coping is pressed vertically onto the brackets and secured by positive engagement with their geometry. Installation is carried out in accordance with the installation instructions.
03
Installed and easy to maintain
Each module can be released individually and properly refitted. This keeps the parapet surface accessible, for example for maintenance work or inspecting the lightning protection system.
